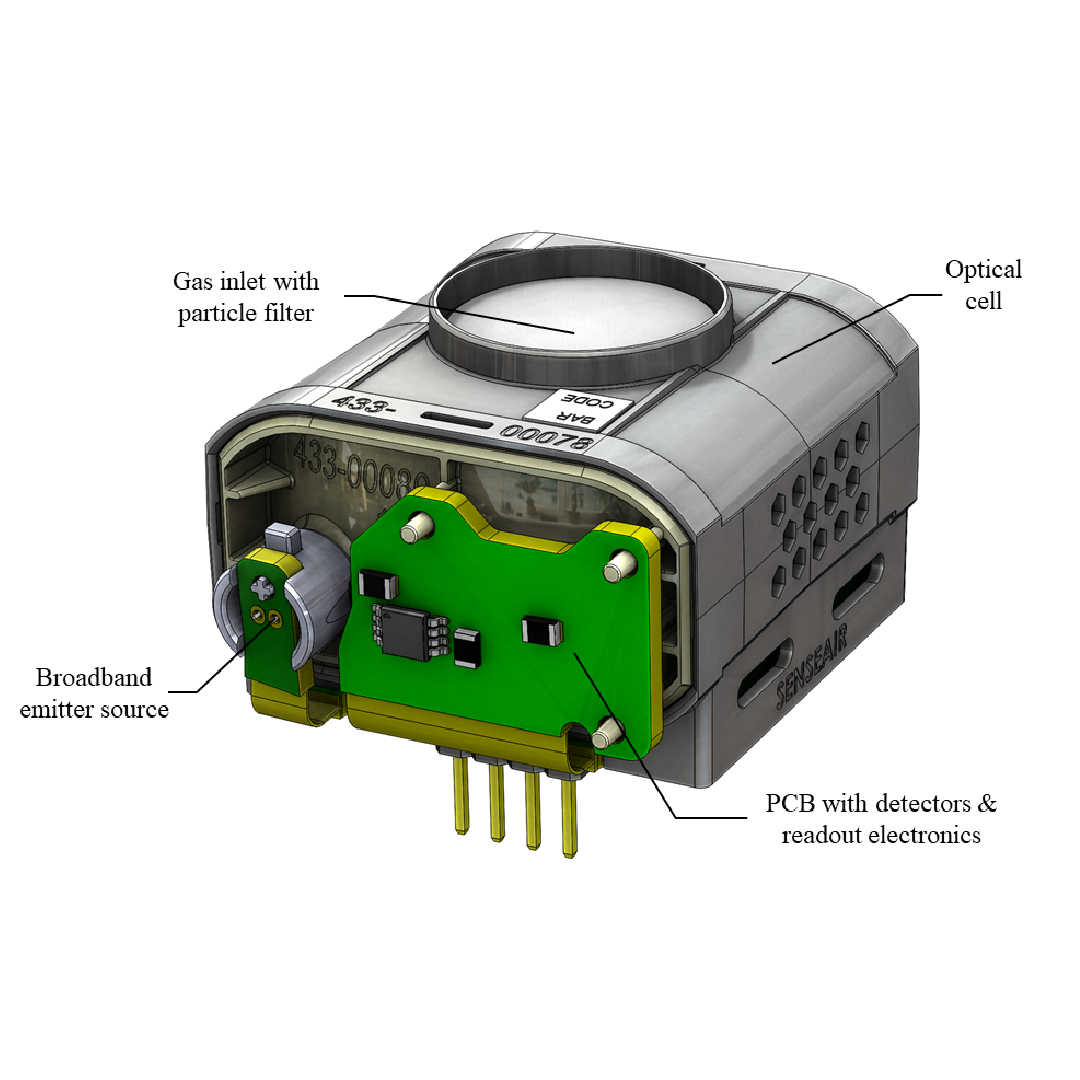

A small, versatile, and high precision 3-channel NDIR sensor for CH₄ and CO₂ sensing
A breakthrough in the NDIR sensing! With the K96 proof of concept, Senseair introduces a very novel approach to measure simultaneously 3 different species with one mid-IR source. Senseair K96 is a module that is designed for simple integration into products. Every sensor is individually calibrated and is provided with UART digital interface. It offers new cost-effective alternatives for a wide variety of applications related to GHG (CO₂, N₂O, CH₄) monitoring.
Key benefits:
- 3 species measured simultaneously.
- High precision
- Maintenance free
- Long lifetime
- Individually calibrated with temperature compensation
- Possibility to correct cross-sensitivities between gas species using the dedicated NDIR channels.
Characteristics:
| Operating Principle | 3 channel Non-Dispersive InfraRed (NDIR) sensor |
| Measured gas |
|
| Measurement range |
|
| Resolution |
|
| Accuracy | ±30 ppm ±3% of reading1, 2 except H₂O: ±200 ppm ±3% of reading |
| Maintenance | Periodic 1 point calibration |
| Power supply | 6 – 8.5 VDC |
| Operation temperature | 0 – 50°C |
| Operation RH | 0 – 95 % non-condensing |
| Communication & outputs | UART (Modbus, FastStream) |
| Dimensions | 33.9 x 43 x 26mm |
| Energy consumption | 300mA peak, 50mA average |
Note 1: for CH₄, accuracy is given for dry air samples. Interference from H₂O is expected.
Note 2: for N₂O, accuracy is given for dry and CO₂ free air samples. Interferences from H₂O and CO₂ are expected.
